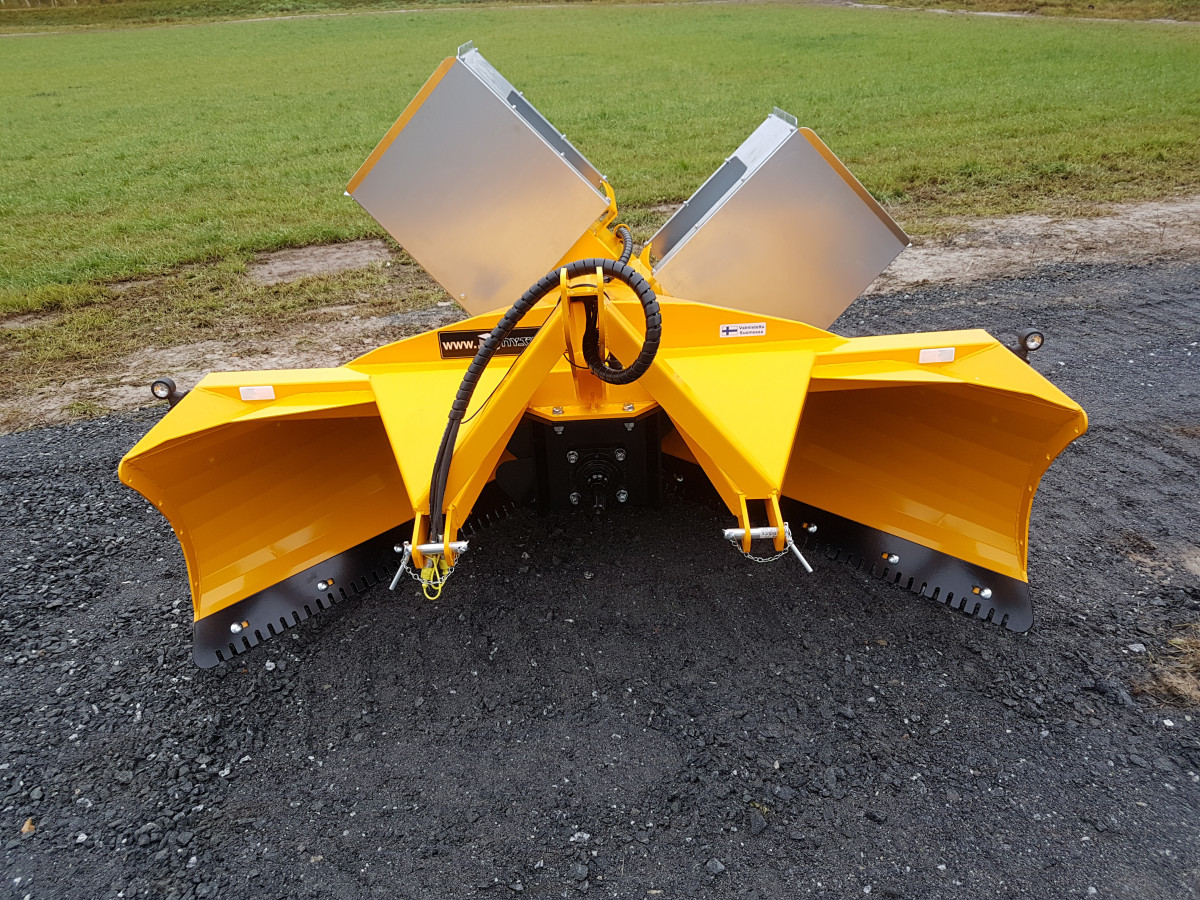

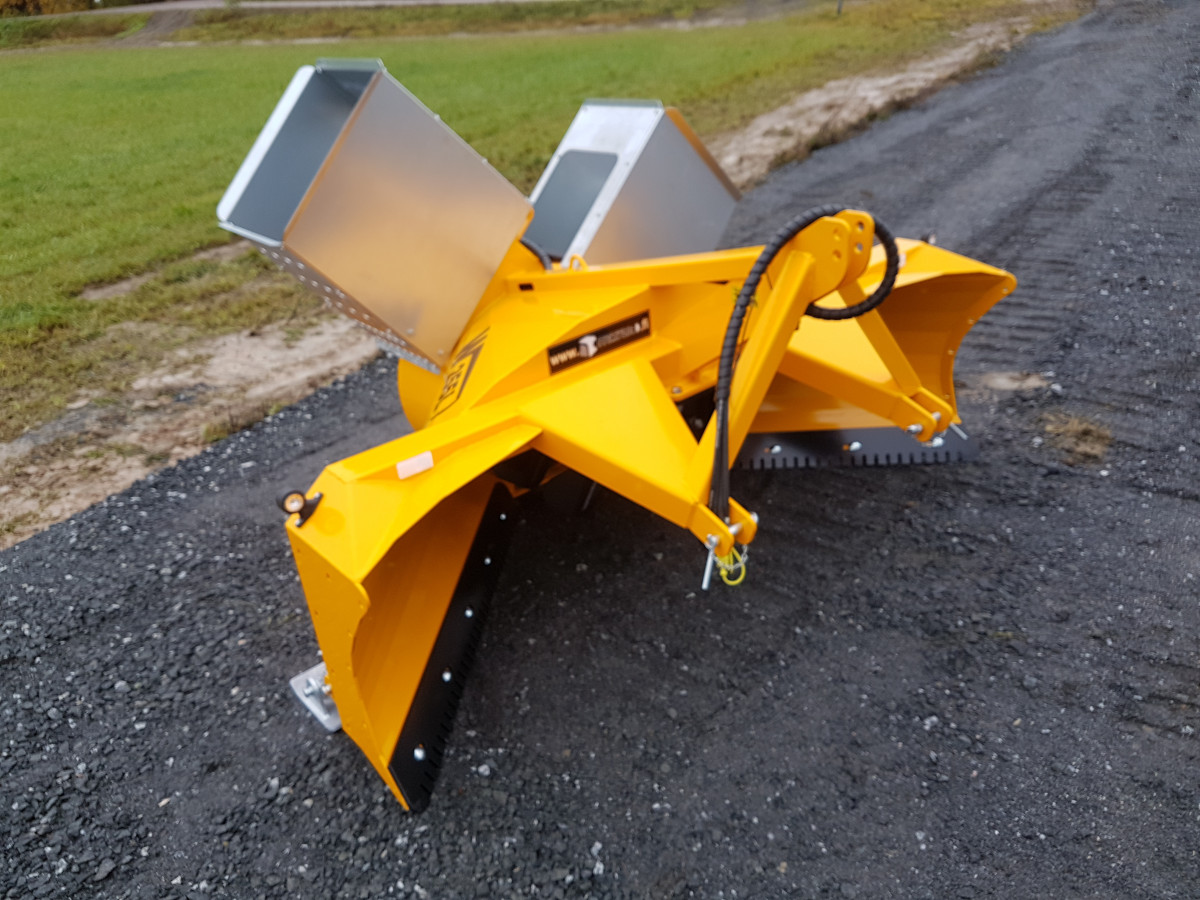

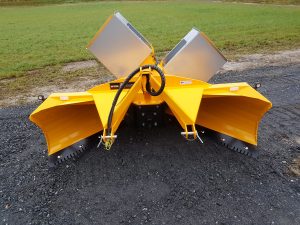

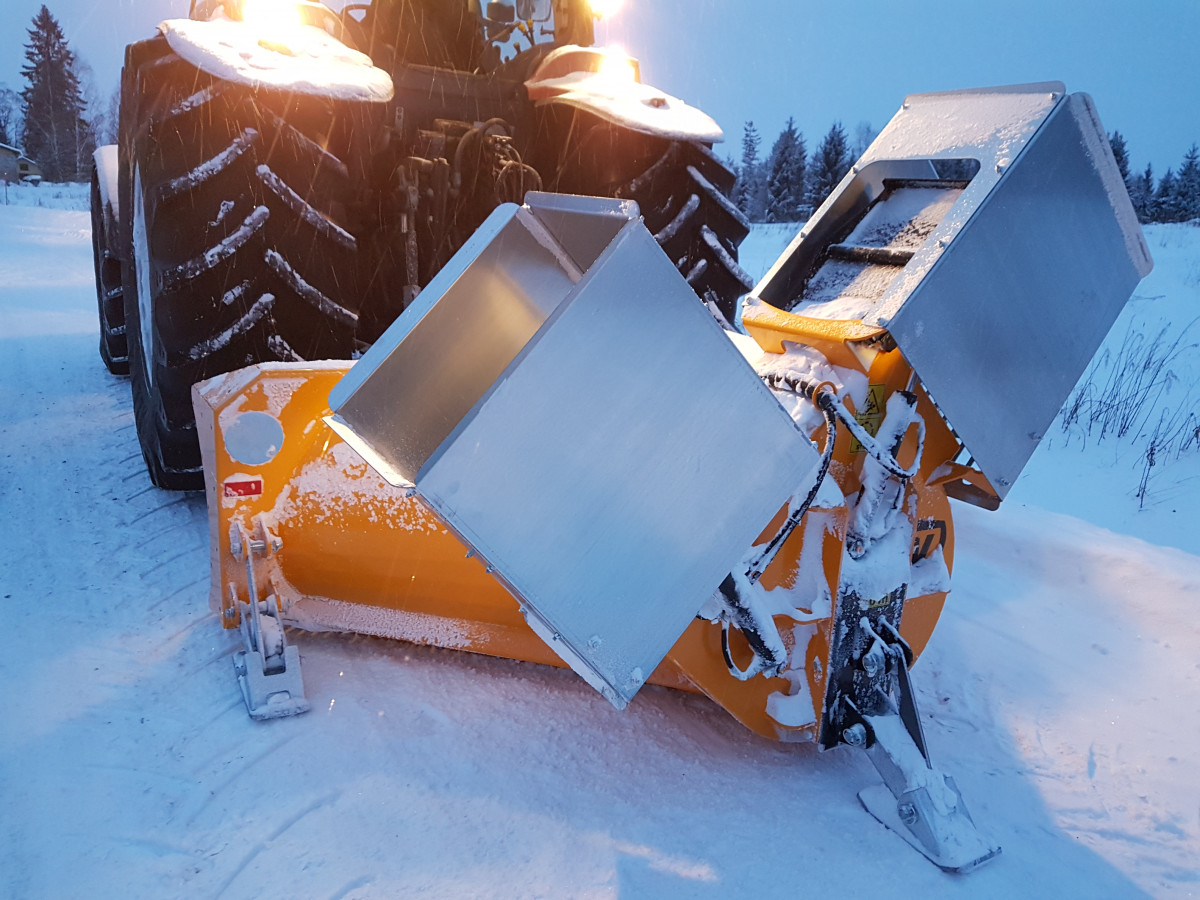

W255L

AGILITY FOR REAL ESTATE SNOW WORKS

The direct drive W255L models are robust snow blowers, the feed mechanism of which can be equipped with blades lockable by shear bolts. The enclosed frame structure makes the snow blowers exceptionally durable. The customised 75cm ploughing wing efficiently supplies the snow to the rotor. Wide outlets eject snow efficiently; the shutters are hydraulically controlled.

Frame and rotor material: S355 structural steel, wear blades are made of 500HB Hardox.

Accessories available for W255L include support legs, snow bank cutters, and LED lights.

Surface treatment: shot blasting and powder-coating, which result in durable and slippery coating for snow throwing.

TECHNICAL SPECIFICATIONS

Working width 255cm
Weight 890kg
Ploughing wing 75cm
Throwing impeller 76cm, fixed
Feed rotor blade feed, lockable blade 6 pcs. / 540 rpm
Shaft 70mm, bearings 2 pcs. UCF214
Wear blades side blades 12mm, centre blade 16mm 500HB
Splined shaft 1 3/4″/ recommended articulated shaft, size class Series 7
PTO 540 RPM
Mounting lifting device of cat. 2
Power demand 120 hp
Standard equipment end plates
Optional equipment support legs 3 pcs., LED lights, bank cutter (right and left)

Photos and videos

Additional equipment

Support legs 3 pcs

Bank cutter

LED lights (standard in 241, 242 and 260R models)
